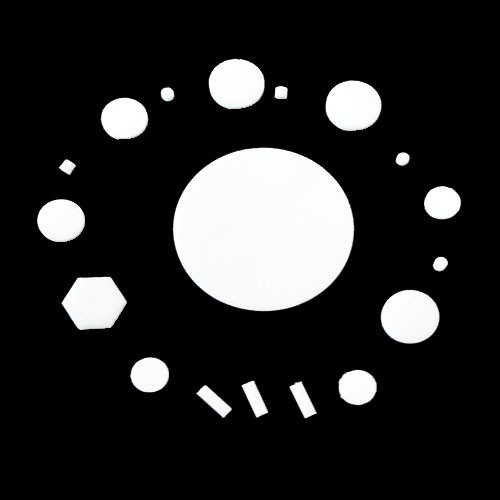

If you've ever taken apart a lead-acid battery vent cap, you've seen it. A small white disc, usually about the size of a coin. Sometimes people call it a filter disc, an acid filter, a flame arrestor, or just "that little thing inside the cap." It looks simple. But when it doesn't work, you notice. Acid mist leaking out. Water loss faster than expected. Dust or moisture getting into the battery. In extreme cases, a spark from outside igniting internal gas.

We've produced a lot of these discs over the years. Different materials, different pore sizes, different designs. Here's what we've learned about what works and what doesn't.

Q1: What does this Acid Filter actually do?

First, it stops acid mist. When a battery charges, it produces gas bubbles. Those bubbles pop at the electrolyte surface and send tiny droplets of acid into the air inside the battery. Without a filter disc, those droplets can escape through the vent. Over time, that means acid loss and corrosion around the vent area.

Second, it acts as a flame arrestor. Lead-acid batteries can produce hydrogen during charging. If a flame or spark gets into the vent, the filter disc is supposed to stop it from reaching the inside of the battery. It's a safety feature.

Third, it keeps contamination out. Dust, dirt, and moisture from the outside should not get into the battery. The filter disc is the only barrier.

Q2: What we look for in a good Filter Disc?

1. Pore size consistency. If pores are too large, acid mist gets through. If pores are too small, the disc clogs and the vent can't breathe. We aim for a median pore size around 10 to 20 microns. That catches most acid droplets while still allowing gas to pass.

2. Thickness and strength. A disc that cracks during assembly is useless. We check for consistent thickness and enough structural strength to handle automated cap assembly.

3. Acid resistance. Some cheap discs use fillers that don't hold up in sulfuric acid. We run our own soak tests. 30 days in 1.28 specific gravity sulfuric acid at room temperature. No weight loss. No visible change. That's the baseline.

4. Consistent gas flow. Too restrictive, and the battery pressures up. Too open, and acid mist escapes. We measure flow rate at a standard pressure drop. Every batch gets checked.

Q3: When the filter disc fails, what happens?

1. Acid mist escapes. The vent area gets white corrosion. Electrolyte level drops faster than normal. The customer thinks the battery is leaking from a cracked case. But it's just the disc not doing its job.

2. Clogged disc. Too much resistance. Gas builds up inside the battery. Pressure lifts the vent cap slightly. Then acid wicks out around the cap seal. Same result — acid on top of the battery.

3. No flame arrestor. Most customers don't think about this until something goes wrong. A spark near a charging battery that off-gasses hydrogen is a real risk. A proper filter disc with flame arrestor function stops the flame from entering the battery. It's one of those things you never notice — until you need it.

The filter disc is a small part. It costs pennies. But when it fails, the battery looks bad. Acid on the top cover. Corrosion around the terminals. Customers assuming the whole battery is poor quality.

We don't sell the cheapest discs. We also don't sell the most expensive. We sell discs that work consistently, batch after batch. If you're having trouble with acid mist leakage or clogged vents, the disc is worth a closer look.
